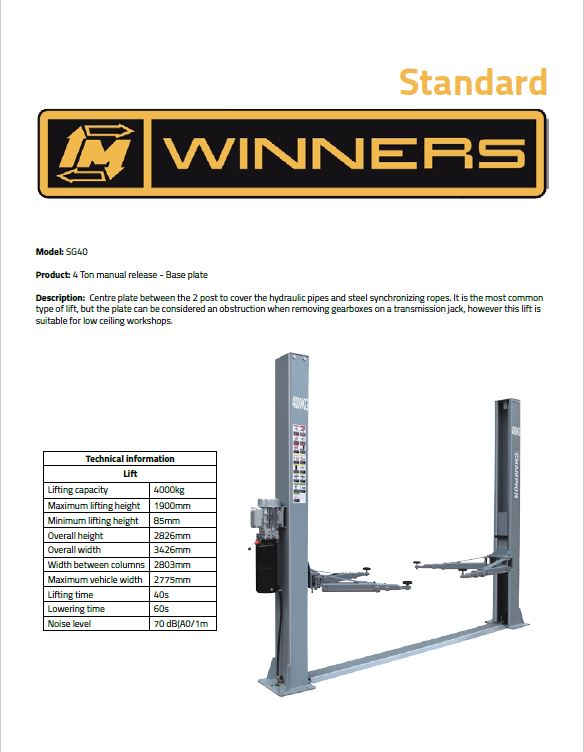

4 Ton manual release – Base plate
Model: SG40
Product: 4 Ton manual release – Base plate
Description:
Centre plate between the 2 post to cover the hydraulic pipes and steel synchronizing ropes.
It is the most common type of lift, but the plate can be considered an obstruction when removing gearboxes on a transmission jack, however this lift is suitable for low ceiling workshops.
Technical information
Lift
Lifting capacity 4000kg
Maximum lifting height 1900mm
Minimum lifting height 85mm
Overall height 2826mm
Overall width 3426mm
Width between columns 2803mm
Maximum vehicle width 2775mm
Lifting time 40s
Lowering time 60s
Noise level 70 dB(A0/1m
