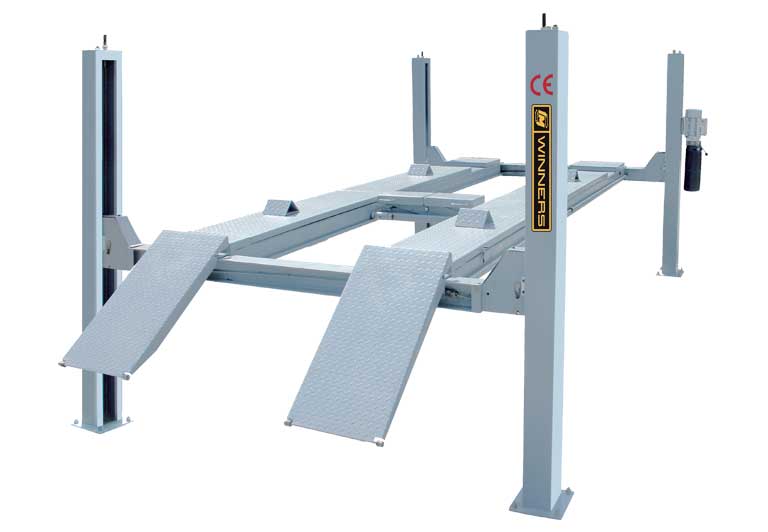

5 ton Alignment lift with slip plates & 2.5 ton aux jack
Model: SG4
Product: 5 ton Alignment lift with slip plates & 2.5 ton aux jack
General information:
The SG4 wheel alignment lift has built in rear slip plates, and comes with an 2.5 ton auxiliary jack and is suitable for long wheelbase Iveco’s.
(has all of the accessories required for the purpose of carrying out wheel alignment)
Technical information
Alignment lift specs
Lifting capacity 5000 kg
Max lifting height 1800 mm
Raising/lowering time ± 60s
Total height <2204 mm
Total width 3470 mm
Platform length 5192 mm
Platform width 500 mm
Power supply 220V
Power 3.0 KW
Hydraulic pressure 18MPa
Net weight 1480 kg
Auxiliary jack specs
Lifting capacity 2500 kg
Max lifting height 350 mm
Total height 515 mm
Total width 390 mm
Platform length 1130 mm
Net weight 120 kg
