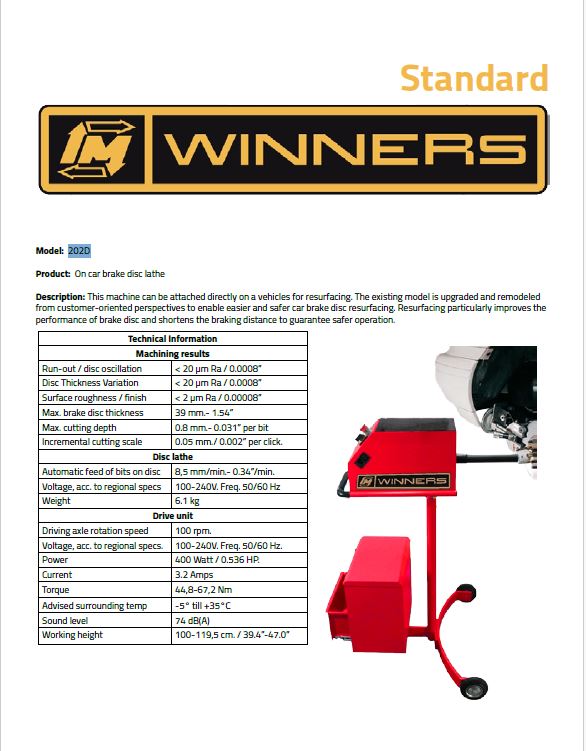

On car brake disc lathe
Model: 202D
Product: On car brake disc lathe
Description:
This machine can be attached directly on a vehicles for resurfacing.
The existing model is upgraded and remodeled from customer-oriented perspectives to enable easier and safer car brake disc resurfacing.
Resurfacing particularly improves the performance of brake disc and shortens the braking distance to guarantee safer operation.
Technical Information
Machining results
Run-out / disc oscillation < 20 μm Ra / 0.0008”
Disc Thickness Variation < 20 μm Ra / 0.0008”
Surface roughness / finish < 2 μm Ra / 0.00008”
Max. brake disc thickness 39 mm.- 1.54”
Max. cutting depth 0.8 mm.- 0.031” per bit
Incremental cutting scale 0.05 mm./ 0.002” per click.
Disc lathe
Automatic feed of bits on disc 8,5 mm/min.- 0.34”/min.
Voltage, acc. to regional specs 100-240V. Freq. 50/60 Hz
Weight 6.1 kg
Drive unit
Driving axle rotation speed 100 rpm.
Voltage, acc. to regional specs. 100-240V. Freq. 50/60 Hz.
Power 400 Watt / 0.536 HP.
Current 3.2 Amps
Torque 44,8-67,2 Nm
Advised surrounding temp -5° till +35°C
Sound level 74 dB(A)
Working height 100-119,5 cm. / 39.4”-47.0”
