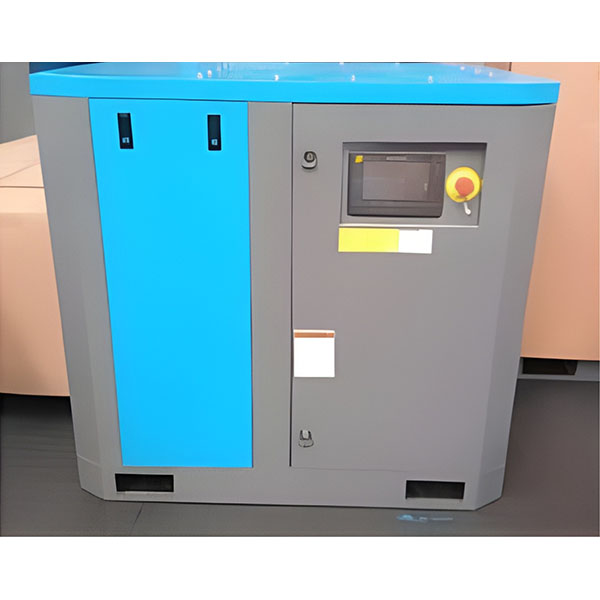

MODEL NO.: SR50
DESCRIPTION: Base Mount
PERFORMANCE DATA
Number of Stages: 1
Full Load Pressure: 8 / 10 / 13 bar
Capacity at Full Load Pressure: 6.2 / 5.6 / 5.0 m3/min (cfm)
Power at Full Load Pressure – Shaft: 37 kW
Gear Ratio: 1.1 ratio
Specific Efficency: 5.9 / 6.6 / 7.4 ( m3/min / KW
ELECTRICAL DATA (TYPICAL)
Operating Voltage: 380 V
Nominal RPM: 2850 rpm
Full Load Current: 74 A
Starter type: PF
Starter Current Rating: 100 A
Motor Efficiency: 96,7%
Enclosure Ingress Protection Rating: IP55
PHYSICAL DATA
Length: 1340 mm
Width: 1000 mm
Height: 1290 mm
Weight: 750 kg
Lubricating Oil Capacity: 20 R1 litres
Discharge Connection Size: 1/2 inches
Controller Type: MAM6080 (IoT Enabled)
